Prerequisites for Bash on Jupyter

Being able to find a Bash Reference. Here is a Bash Cheat Sheet Install the Bash Kernel for Jupyter notebooks. Expectations are pip3 and python3 are defined within the path. The bash shell allowed construction of this tutorial.

  • pip install bash_kernel
  • python -m bash_kernel.install

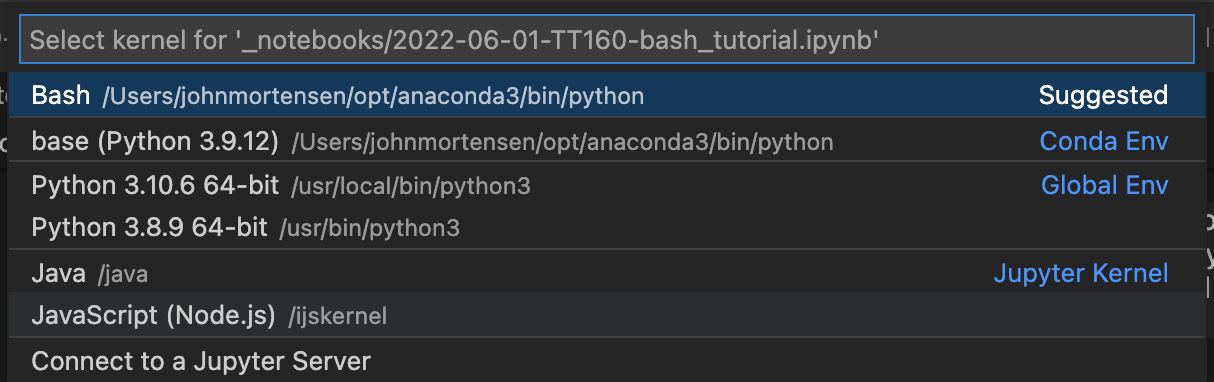

Selecting a kernel in "code --project--" or "jupyter notebook --file.ipynb--" that have bash in options.

Prerequisites for Project Directory

Practice pulling code from git to your machine. This will create a project directory and add APCSP github project to the directory. There is conditional logic to make sure that directory and pull only happen if it does not (!) exist.

  • Hack:Change variables, make new directory, clone to that directory.
echo "Using conditional statement to create a project directory and project"

# Variable section
export project_dir=$HOME/vscode  # change vscode to different name to test git clone
export project=$project_dir/APCSP  # change APCSP to name of project from git clone
export project_repo="https://github.com/nighthawkcoders/APCSP.git"  # change to project of choice

cd ~    # start in home directory

# Conditional block to make a project directory
if [ ! -d $project_dir ]
then
    echo "Directory $project_dir does not exists... makinng directory $project_dir"
    mkdir -p $project_dir
fi
echo "Directory $project_dir exists."

# Conditional block to git clone a project from project_repo
if [ ! -d $project ]
then
    echo "Directory $project does not exists... cloning $project_repo"
    cd $project_dir
    git clone $project_repo
    cd ~
fi
echo "Directory $project exists."

Look inside Fastpages/Github page project

All computers contain files and directories. The clone brought more files from cloud to your machine. Using the bash shell you will see some commands that show and interact with files and directories.

  • "ls" lists computer files in Unix and Unix-like operating systems
  • "cd" offers way to navigate and change working directory
  • "pwd" print working directory
  • "echo" used to display line of text/string that are passed as an argument
echo "Navigate to project, then navigate to area wwhere files were cloned"
cd $project
pwd

echo ""
echo "list top level or root of files with project pulled from github"
ls

echo ""
echo "list again with hidden files pulled from github"
ls -a   # hidden files flag, many shell commands have flags

echo ""
echo "list all files in long format"
ls -al   # all files and long listing

echo "Look for posts"
export posts=$project/_posts  # _posts inside project
cd $posts  # this should exist per fastpages
pwd  # present working directory
ls -l  # list posts

echo "Look for notebooks"
export notebooks=$project/_notebooks  # _notebooks is inside project
cd $notebooks   # this should exist per fastpages
pwd  # present working directory
ls -l  # list notebooks

echo "Look for images in notebooks, print working directory, list files"
cd $notebooks/images  # this should exist per fastpages
pwd
ls -l

Look inside a Markdown File

"cat" reads data from the file and gives its content as output

echo "Navigate to project, then navigate to area wwhere files were cloned"

cd $project
echo "show the contents of README.md"
echo ""

cat README.md  # show contents of file, in this case markdown
echo ""
echo "end of README.md"

Env, Git and GitHub

Env(ironment) is used to capture things like path to Code or Home directory. Git and GitHub is NOT Only used to exchange code between individuals, it is often used to exchange code through servers, in our case deployment for Website. All tools we use have a behind the scenes hav relationship with the system they run on (MacOS, Windows, Linus) or a relationship with servers which they are connected to (ie GitHub). There is an "env" command in bash. There are environment files and setting files (.git/config) for Git. They both use a key/value concept.

  • "env" show setting for your shell
  • "git clone" sets up a director of files
  • "cd $project" allows user to move inside that directory of files
  • ".git" is a hidden directory that is used by git to establish relationship between machine and the git server on GitHub.
echo "Show the shell environment variables, key on left of equal value on right"
echo ""

env

cd $project

echo ""
echo "show the secrets of .git"
cd .git
ls -l

echo ""
echo "look at config file"
cat config

Student Request - Make a file in Bash

This example was requested by a student (Jun Lim, CSA). The request was to make jupyer file using bash, I adapted the request to markdown. This type of thought will have great extrapolation to coding and possibilities of using List, Arrays, or APIs to build user interfaces. JavaScript is a language where building HTML is very common.

To get more interesting output from terminal, this will require using something like mdless (https://github.com/ttscoff/mdless). This enables see markdown in rendered format.- On Desktop Install PKG from MacPorts

Output of the example is much nicer in "jupyter"

cd /tmp

file="sample.md"
if [ -f "$file" ]; then
    rm $file
fi

tee -a $file >/dev/null <<EOF
# Show Generated Markdown
This introductory paragraph and this line and the title above are generated using tee with the standard input (<<) redirection operator.
- This bulleted element is still part of the tee body.
EOF

echo "- This bulleted element and lines below are generated using echo with standard output (>>) redirection operator." >> $file
echo "- The list definition, as is, is using space to seperate lines.  Thus the use of commas and hyphens in output." >> $file
actions=("ls,list-directory" "cd,change-directory" "pwd,present-working-directory" "if-then-fi,test-condition" "env,bash-environment-variables" "cat,view-file-contents" "tee,write-to-output" "echo,display-content-of-string" "echo_text_>\$file,write-content-to-file" "echo_text_>>\$file,append-content-to-file")
for action in ${actions[@]}; do  # for loop is very similar to other language, though [@], semi-colon, do are new
  action=${action//-/ }  # convert dash to space
  action=${action//,/: } # convert comma to colon
  action=${action//_text_/ \"sample text\" } # convert _text_ to sample text, note escape character \ to avoid "" having meaning
  echo "    - ${action//-/ }" >> $file  # echo is redirected to file with >>
done

echo ""
echo "File listing and status"
ls -l $file # list file
wc $file   # show words
mdless $file  # this requires installation, but renders markown from terminal

rm $file  # clean up termporary file

Hacks

Go back to some of the deployment procedures and think about some thing you could verify through Bash notebook.

  • Is there anything we use to verify tools we install? Think about versions.
  • Is there anything we could verify with Anaconda?
  • How would you update a repository?
  • Really cool would be automating a procedure from installation.
